GRV8-05 3-Phase Voltage Monitoring Relay with Phase Sequence and Phase Failure Protection M265
$30.24
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by lishutechnologies.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$30.24
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by lishutechnologies.com
Free 30-day returns Details
Product details
| Management number | 211058340 | Release Date | 2026/04/04 | List Price | $12.10 | Model Number | 211058340 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Wide Application Range: Equipment and control (tower cranes, elevators, agricultural equipment, refrigerated trucks); prevent reverse of equipment; normal/emergency power switch; prevent phase failure of dynamic loads
- Convenient Monitoring: The voltage relay can monitor its own operating voltage (true rms measurement)
- LED Indicator: The working status of the voltage control relay is indicated by the LED indicator
- Adjustable Rated Voltages: The voltage relay has 8 adjustable rated voltages, and the voltage measurement accuracy is less than 1%

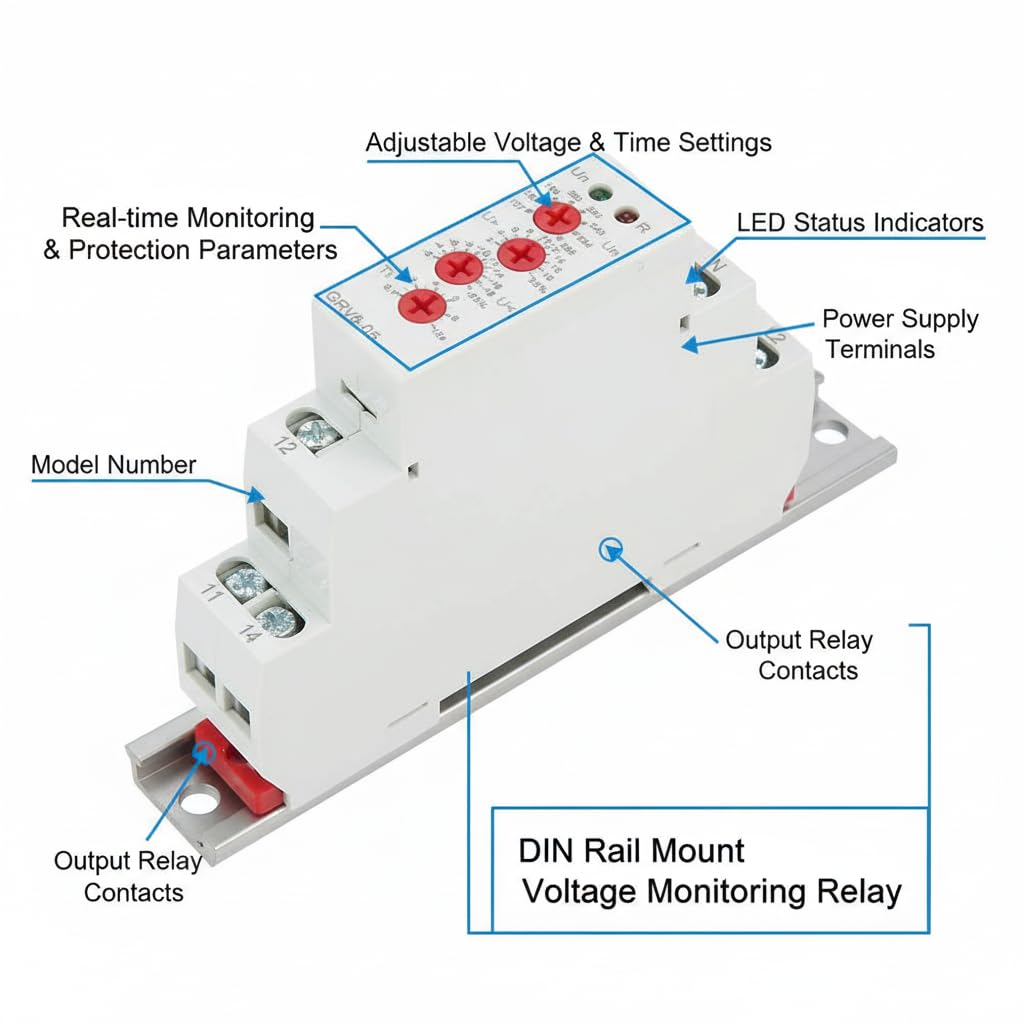

- Compact Design and Easy Installation: The voltage relay is ultra-small and can be mounted on a 35mm DIN rail
- Phase Protection Features: Monitors phase sequence and phase failure to protect three-phase electrical equipment from damage
- Adjustable Delay Time: Action delay time is adjustable from 0.1 to 10 seconds to accommodate different application requirements
- High Switching Capacity: Output relay features 1 SPDT contact rated at 10A AC1, 250VAC/24VDC with mechanical life of 10 million operations
| UPC | 749249151240 |
|---|---|
| Model | YWBL-WHo6m7t0i5sp |
| Brand Name | YWBL-WH |
| Part Number | YWBL-WHo6m7t0i5sp |
| Coil Voltage | 24 Volts (AC) |
| Contact Type | Spdt |
| Manufacturer | YWBL-WH |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 10 Amps |
| Operation Mode | Automatic |
| Contact Material | Copper |
| Specification Met | Din |
| Included Components | inc |
| Contact Current Rating | 10 Amps |
| Maximum Switching Current | 10 Amps |
| Maximum Switching Voltage | 250 Volts |
| Minimum Switching Voltage | 101 Volts (AC) |
